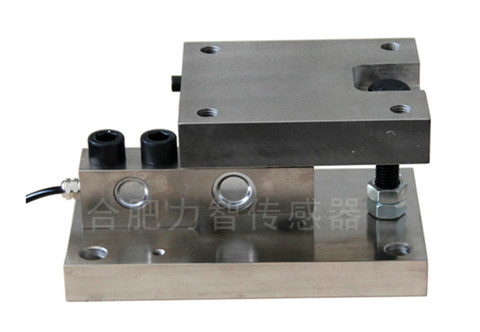

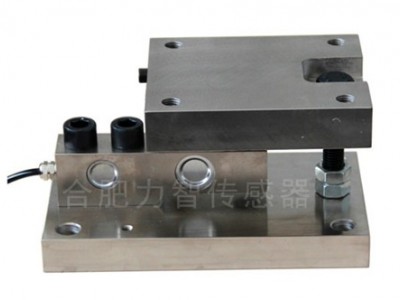

懸臂稱重模塊與各種機械裝置容易連接，安裝非常簡便。具有自動調心功能和高度調節(jié)功能，稱重力值稱量準確。設有水平限位及頂起螺栓，結構穩(wěn)定可靠
|
Zero Balance |
零點平衡 |
±1% of rated output |
|
Creep after 30 minutes |
蠕變 |
±0.3% of rated output |
|
Nonlinearity |
非線性 |
±0.3% of rated output |
|
Repeatability |
重復性 |
±0.2% of rated output |
|
Temp. effect on output |
靈敏度溫漂 |
≤0.02% of applied output/oC |
|
Temp. effect on zero |
零點溫漂 |
≤0.02% of applied output/oC |
|
Safe Temp. Range |
可用溫度范圍 |
-20oC to + 60oC |
|
Temp. Compensated |
溫度補償范圍 |
-10oC to + 40oC |
|
Safe Overload |
安全載荷 |
120% |
|
limit load |
極限載荷 |
150% |
|
Input Impedance |
輸入阻抗 |
750 ohm ± 20 ohm |
|
Output Impedance |
輸出阻抗 |
700 ohm ± 5 ohm |
|
Rated Excitation |
推薦激勵電壓 |
10V-15 DC/AC |
|
accuracy |
綜合精度 |
±0.5% |
